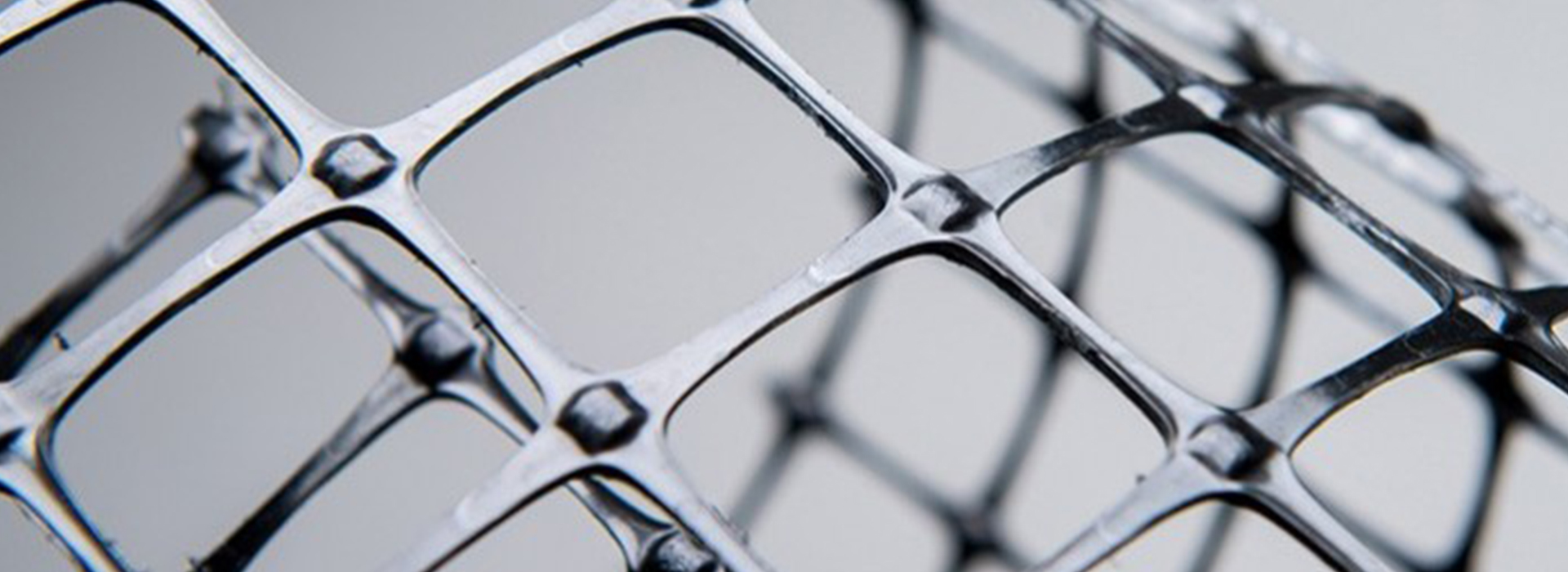

Geogrids

Optimal solutions for soil stabilization and base reinforcement

The basic function of geogrid is soil reinforcement, it works by interlocking with the granular or soil material placed over them. The mechanical properties of geogrid makes it ideal for reinforcing slopes and other soil structures. GeoTrans Technology manufactures a wide range of quality geogrids to fit each project's specific needs.

PRODUCT SUBCATEGORIES

G-Grid® CM Series

G-Grid® FG Series G-Grid® PET Series G-Grid® PP Series G-Grid® Welded Series

Composite Geogrids

An ideal combination of geogrid and geotextile for applications requiring separation, filtration and reinforcement.

G-Grid® CM series are geocomposites manufactured by geogrid heat bonded with needle punched nonwoven geotextile . Geogrid provides soil reinforcement and the nonwoven geotextile provides separation and filtration. The high elongation capacity of nonwoven geotextile ensures that the inter-locking ability between the composite geogrid and the filling material is not reduced and stress is transferred to the geogrid.

Applications

Retaining structures
Basal reinforcement
Piling platforms
Subgrade improvement

Features

Versatile
High tensile strength

Fiberglsas Geogrids

Special for the reinforcement of paved surfaces to prevent reflective cracking and reinforce asphalt pavements.

G-Grid® FG series are warp knitted by fiberglass yarns as per desired mesh sizes and strength, and coated with bitumen to provide a good bond with the asphalt layers. It can strengthen the asphalt layer, extend the service life of pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load. The tensile strengths of Grid® fiberglass geogrids are from 20kN to 300kN, 40-25KN/m to 300-50KN/m at CD and MD directions.

Applications

Road maintenance/repair jobs
Road pavements, asphalt pavements

Features

Cost-effective
High tensile strength
High and low temperature resistance

PET Knitted Geogrids

Suitable for use in construction projects for further strengthening and soil stabilization.

G-Grid® PET series are knitted by high tenacity polyester yarns as per desired mesh sizes and strength, coated with a PVC or SBR coating to provide dimensional stability. G-Grid® PET geogrids are high strength, high tenacity in a full range of tensile strengths from 20kN/m to 1000KN/m, 40-25kN/m to 800-50kN/m at CD and MD directions.

Applications

Reinforcement of granular soils
Embankment reinforcement
Retaining structures
Slope reinforcement

Features

High tensile strength
Convenient to construct

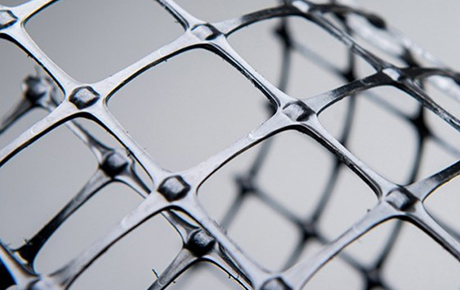

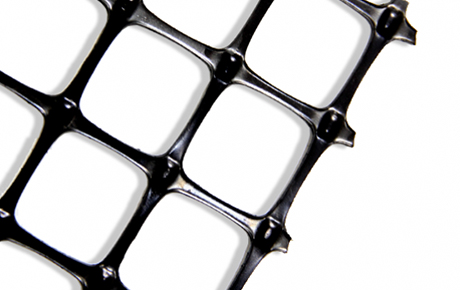

PP Biaxial Geogrids

It makes soil reinforced with its excellent structure stability and strong mechanical interlock performance.

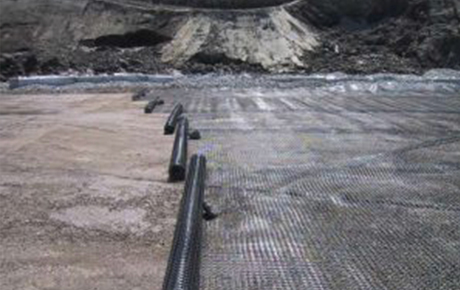

G-Grid® PP series are an integrally formed biaxial geogrids made of polypropylene through extrusion, punching and drawing. This material has considerable tensile strength in both longitudinal (MD) and transverse (CD) directions. This chain structure can effectively bear and diffuse forces on soft soil and is applicable to large area permanent load bearing foundation as reinforce. So that it can effectively avoid crack, collapse on the surface.

Applications

Pave or unpaved road construction
Garbage disposal engineering
Mining applications
Basal reinforcement

Features

High tensile strength in MD and CD directions
High chemical and biological resistance

Welded Geogrids

Widely applied on strengthening of soft foundation.

G-Grid® welded series are welded geogrids. It’s welded into “#” structure after adding reinforced fiber into PE, PP stretched ribs. They are divided into uniaxial and biaxial welded geogrids. This product has advantages of high tensile strength, low deformation ratio, anti-corrosion, long lifespan, easy installation and low costs. The geogrids could be laid levelly, and could meet the requirements of all kinds of permanent projects demanding more than 100 years.

Applications

Slopes
Roads
Landfills

Features

High tensile strength
Long lifespan

Used in

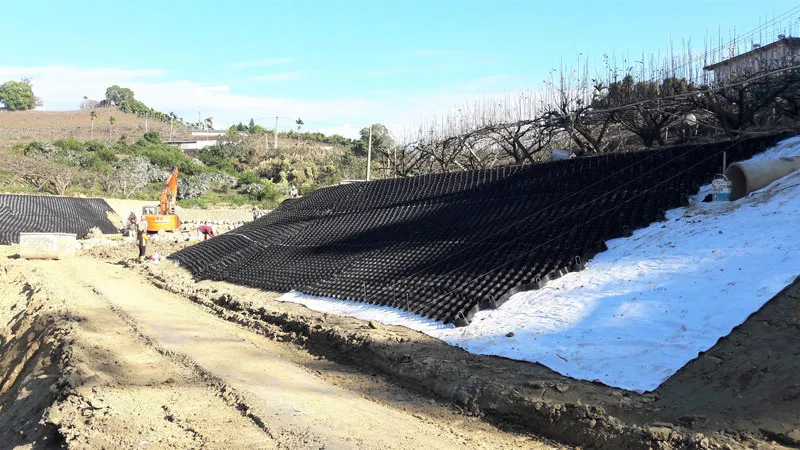

01 Earthwork Construction

Steep slope, retaining wall, embankment

02 Road Works

Road, railway, highway, pavement, airport runway, tunnel, bridge

03 Environmental Engineering

Landfill, tailing, waste water treatment

04 Marine Engineering

Seawall, breakwater, revetment, cofferdam

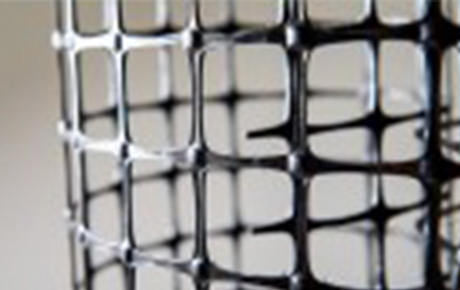

Geogrids are an engineered geosynthetics primarily used for soil stabilization and base reinforcement. They are made from polymer materials such as polypropylene (PP), polyester (PET) or high density polyethylene (HDPE) through extrusion, weaving or welding and feature a grid-like structure with vary strengths, strains and load-bearing capabilities.

Geogrids have a primary strength in one direction only (uniaxial geogrids) although in certain applications the strength may be equal in both directions of the product (biaxial geogrids). The open apertures of the geogrids confine materials within them, thereby increasing the shear strength of such materials.

For more information please refer to the Technical Information on the right.

Technical Information

Frequently Asked Questions

1. What is the function of geogrid?

The function is soil stabilization and base reinforcement.

2. How does geogrid works?

Geogrids work by interlocking with the aggregate and providing strength to the aggregate at a very low strain.

3. What is the deploying direction of geogrid?

Biaxial geogrids typically have the same resistance in both directions (roll direction and cross direction). They can therefore be installed in both directions. Uniaxial geogrids must be installed so that the tensile loads are applied along the roll length.

4.What is the application of geogrid?

Geogrids are primarily used for soil stabilization and base reinforcement, such as used in retaining wall, bridge abutments, steep slopes, embankments on soft subgrades, mining applications, roads, railways and pavement construction, etc.
