Geotextiles

Play the functions of separation, filtration, drainage, stabilization and protection for a variety of civil engineering.

Geotextiles are the most well-known and commonly used geosynthetic materials. GeoTrans Technology provides a wide range of cost-effective woven and nonwoven geotextiles to suit project needs. All geotextiles are produced in ISO certified factory with strict QC/QA, you can be assured of its superior quality and consistency.

PRODUCT SUBCATEGORIES

G-Tex® GLS-V Series

G-Tex® GE Series G-Tex® GLP Series G-Tex® PET Series G-Tex® PP Series

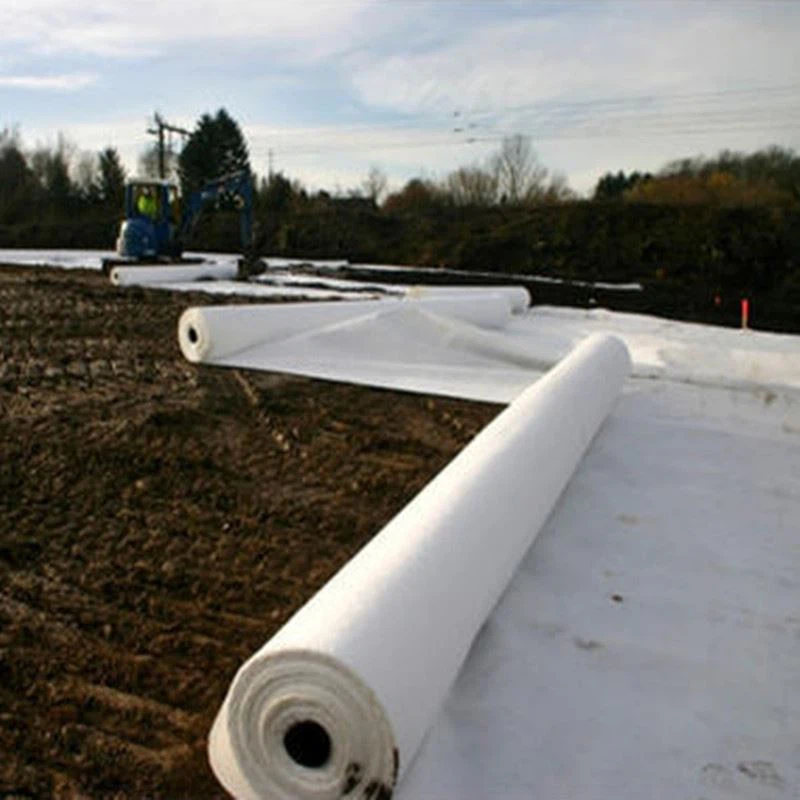

Virgin PET Staple Fiber Nonwoven Geotextiles

Used in road works, environmental and hydraulic infrastructure projects.

G-Tex® GLS-V series nonwoven geotextile are made from 100% polyester staple fibers. It is UV stabilized, weight range from 100g/m2 to 1200g/m2, standard roll widths are 4m and 6m. GLS-V series differs from GLP series in the material and properties of the product. GLS-V series are more cost effective, GLP series are more suitable for acid and alkali environments.

Applications

Bridges
Lakes
Airports
Tunnels

Features

High tensile strength
Excellent permeability and filtration
Excellent heat resistance and aging resistance
Cost effective

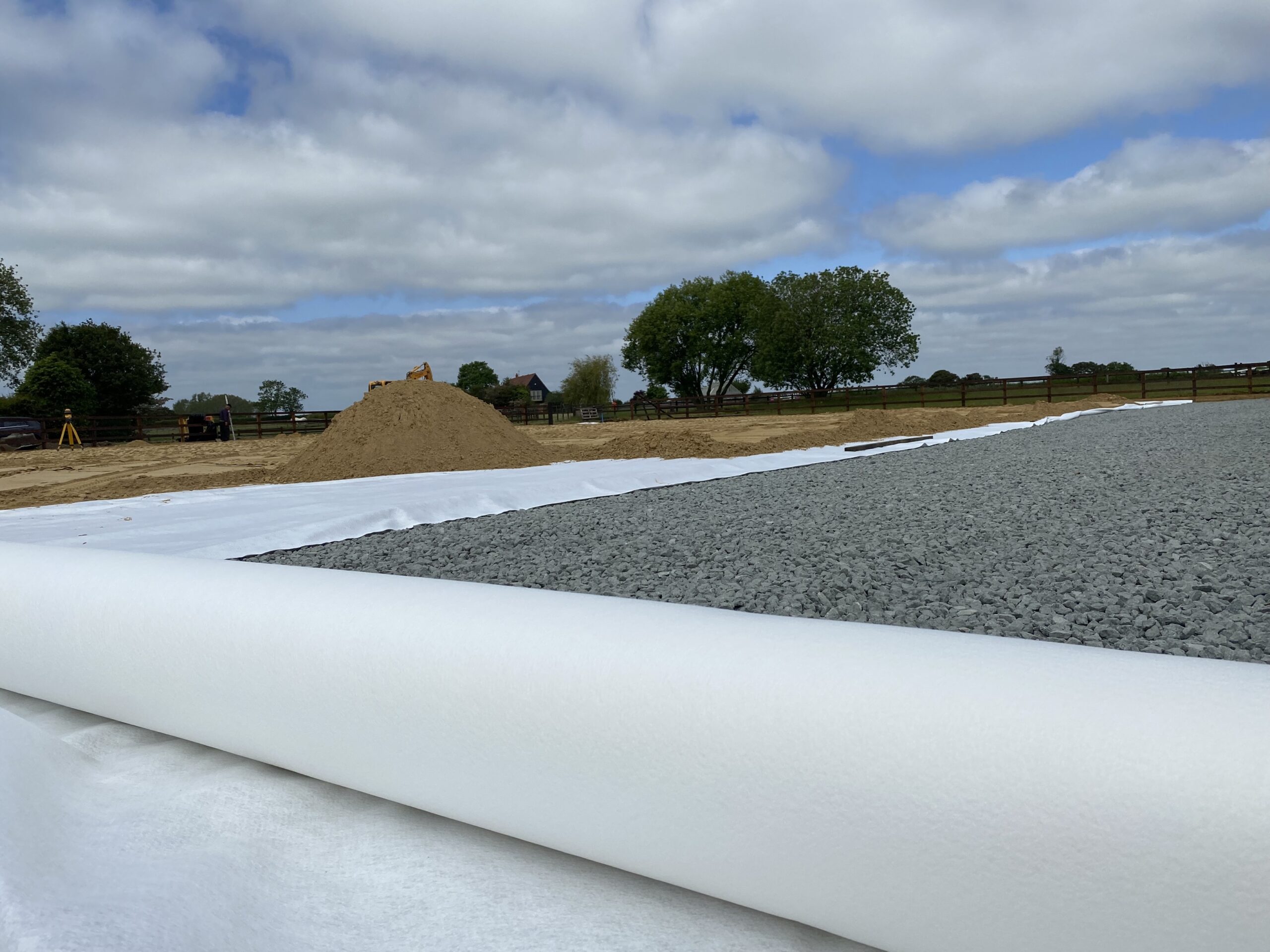

PET Continuous Filament Nonwoven Geotextiles

Conforming to Australian & New Zealand Highway Specifications “ QLD MRTS27 & NSW RMS R63 & NZ TNZ F/7 requirements for strengths and filtration characteristics”.

G-Tex® GE series nonwoven geotextiles are made from polyester chips. It offers exceptional durability, high puncture resistance, high water flow rates and high soil interaction while providing excellent soil particle retention. There are a variety of grades and roll sizes to meet different projects requirements and reduce wastage.

Applications

Mining
Road Works
Dams
Coastal beach

Features

High UV stability
High strength and high elongation
Excellent water flow rates and soil retention
Most versatile material

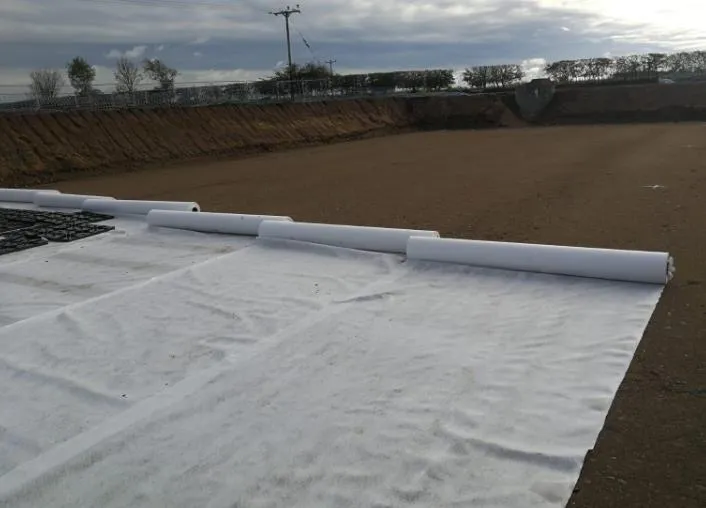

PP Staple Fiber Nonwoven Geotextiles

A highly durable geotextiles that are chemically resistant to naturally occurring soil environments, especially strong resistance to acid and alkali environments.

G-Tex® GLP series nonwoven geotextiles are made from UV stabilized 100% polypropylene staple fibers, mechanically bonded by carding, lapping and needle punching. Weight range from 100g/m2 to 1200g/m2, standard roll widths are 4m and 6m. Customized products are available.

Applications

Landfills
Embankments
Railways
Coastal beach

Features

High UV resistance
Excellent puncture and tear resistance
Unique hydraulic properties
Strong resistance to acid and alkali, antioxidant
High long-term resistance and robustness

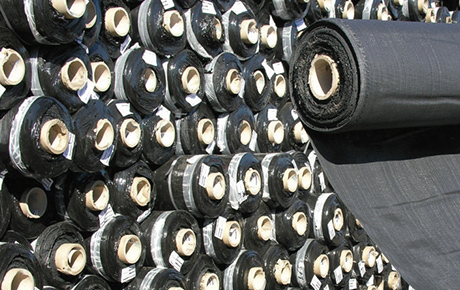

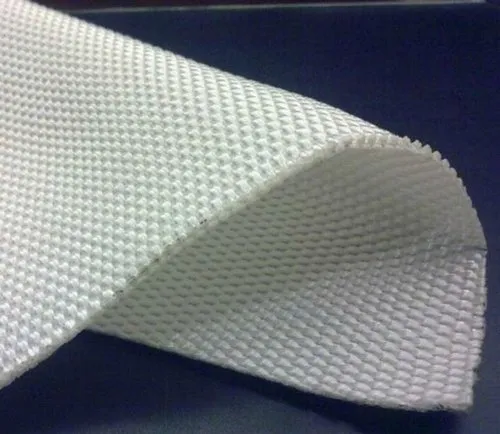

PET Woven Geotextiles

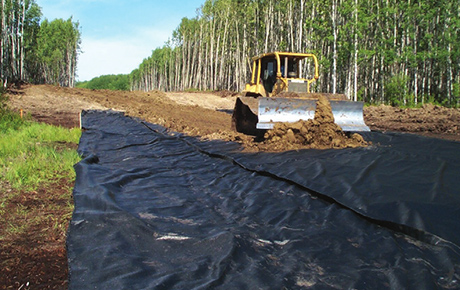

Used to reinforce soft soils where extremely high tensile strength with low elongation is required. The ultimate tensile strength of G-Tex® PET woven geotextiles can reach over 1600kN/m in uniaxial direction.

G-Tex® PET series are woven geotextiles, made from high tenacity polyester yarns with excellent long-term design strength (LTDS) ideally used for applications requiring separation and reinforcement. G-Tex® PET woven geotextiles provide a cost effective solution to achieve greater and quicker stability of embankments on soft foundations.

Applications

Basal reinforcement
Embankment reinforcement
Retaining structures
Subgrade improvement

Features

High strength at low elongation
Long-term design strength (LTDS)
Separation and reinforcement in one product
Enhance structural stability

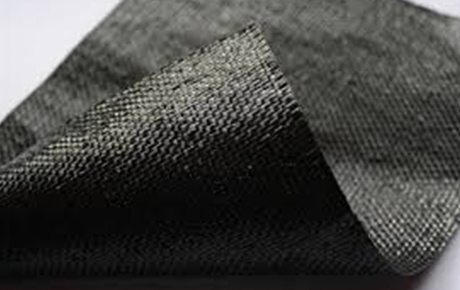

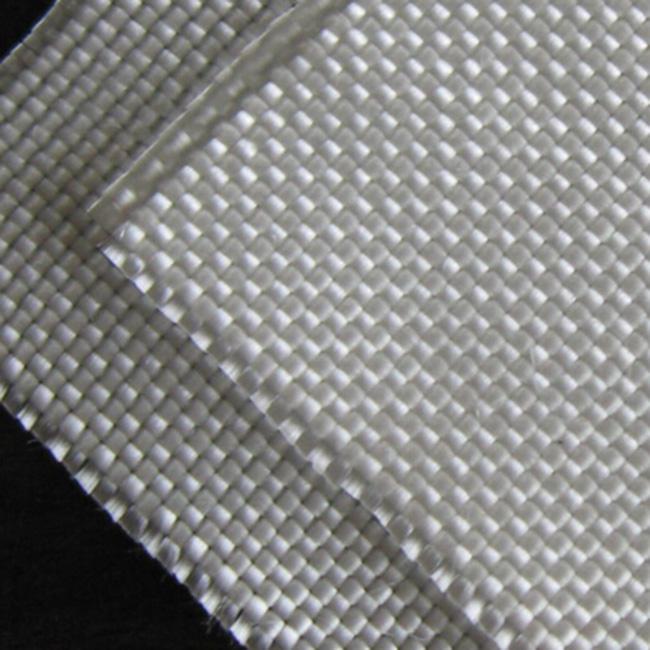

PP Woven Geotextiles

Ideal for applications where both high-strength reinforcement and separation functions are needed. Typically the strength range is from 14 kN/m to 150 kN/m.

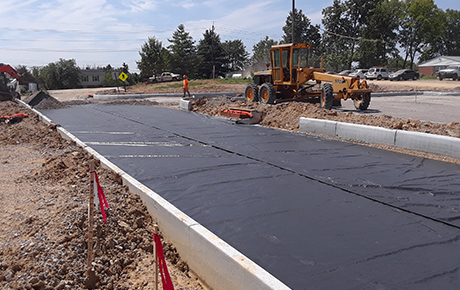

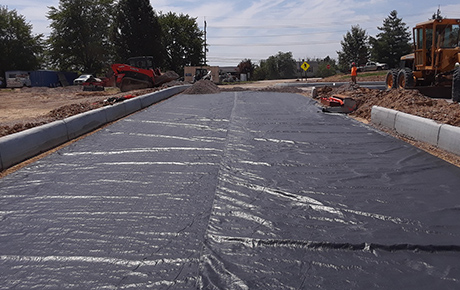

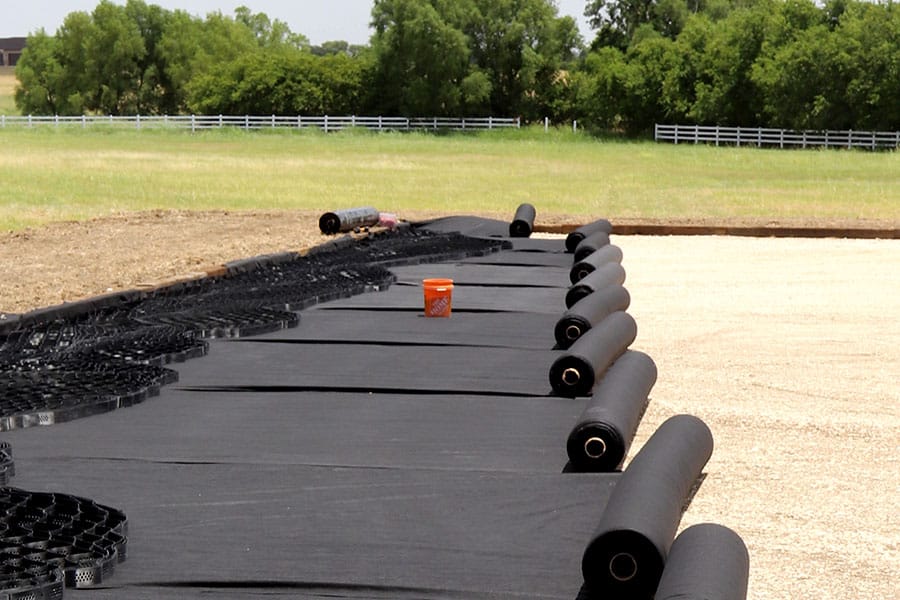

G-Tex® PP series are woven geotexties, made from high tenacity polypropylene yarns. It is versatile in such a way that it reinforces soft ground and embankment while securing the trafficability of heavy equipment on soft ground. PP woven geotextiles have the name Ground Stabilization Geotextiles as it acts as a great separation for sand layer and soft ground, and provides prevention of uneven settlement of soft ground.

Applications

Parking lots
Driveways
Construction site accesses
Marine and coastal constructions

Features

High strength at low elongation
High modulus, resistant to damage
Separation and reinforcement in one product
Improve the performance of paved and unpaved roads

Used in

01 Transportation Engineering

Road, highway, railway, tunnel, airport

02 Hydraulic Engineering

Port, pond, reservoir, coastal beach, river, lake

03 Environmental Engineering

Landfill, tailing, waste water treatment

04 Energy Engineering

Power, oil, gas, coal mining

Geotextiles are woven, nonwoven or knitted textile materials consisting of synthetic and or natural polymers. G-Tex® geotextiles are permeable fabrics consisting mainly of materials such as polypropylene(PP) and polyester(PET). Their quality and performances can vary depending on the fibers length, the polymer used, the assembling process, etc.

These materials are used in geotechnical and civil engineering applications, such as infrastructure works, roads, railways, coastal protection, landfills, erosion control… to mostly fulfil separation, filtration drainage, stabilization and protection functions. They are the baseline of many other composite for combination with other geosynthetics.

For more information please refer to the Technical Information on the right.

Technical Information

Frequently Asked Questions

1.What are the basic properties of geotextiles?

The mass per unit area of a geotextile affects other properties of the geotextile, such as tensile strength, tear strength, puncture resistance, and apparent opening size, and is usually a good indicator of these properties. Generally, as the mass per unit area increases, strength and puncture resistance also increase.

2. What is the function of geotextiles?

The main functions of geotextiles are separation, filtration, drainage, protection and reinforcement. Geotextiles are typically used to improve soil characteristics on embankments, roads, railways, pipelines, canals, dams, coastal engineering and retaining structures.

3. What are the differences between nonwoven and woven geotextiles?

As the names indicate, the basic difference between the two is how they're manufactured. Nonwoven geotextiles are manufactured with a needle-punch process, using barbed needles to create a felt-like permeable geotextile fabric. Woven geotextiles are woven with industrial looms in a consistently applied pattern. The two geotextile types have their own benefits and uses, depending on project requirements for strength, durability.

4. Which geotextile is most suitable for my projects?

Geotextiles must be applied in accordance with its parameters and technical characteristics. Select a specific weight geotextiles for specific applications should be made on the basis of technical specifications or guided by the designer.
